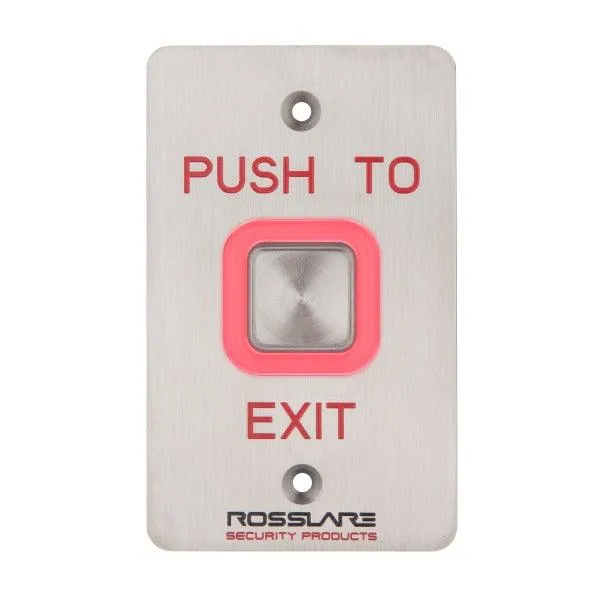

Rosslare's EX-07 is a part of a powerful line of high-quality piezoelectric switches. Designed in mind industrial and high-risk environmental requirements, the EX-07 will adapt well in mines, oil rigs and refineries, military installations, and more.
The advanced digital switch offers features such as buzzer mode, lighting mode, and full dual-relay output. It can be used in many hi-demanding applications, from heavy machinery and mechanical operation panels, to access control systems or direct door control.
Model: EX-07EO
Main Features:- Advanced soft touch piezoelectric switch
- New weatherproof design water and dust proof, grease, oil and other chemical solvent repellent
- Vandal resistant
- Stainless steel mounting plate and tactile button with no moving parts
- Mounting Method Single Gang: Mounts directly to a US gang switch box
- Backed by Rosslares International Guarantee and service with ISO9001 (Certified TV Rhineland) level business and manufacturing operations
Professional Grade Features:
- Non-sparking, non-magnetic, corrosion resistant
- Light square status indicator and accidental activation hindrance
- Adjustable Output and Led indication time of 1 to 60 seconds
- Output and an indication toggle option
- Jumper selectable illumination status: red, green, or no illumination
- Built-in buzzer with alarm input and sound upon button press options
- Two separate full form-C relay outputs for separate application wiring: N.O. and N.C.
- Input for external lighting alerts for evacuation and other applications
